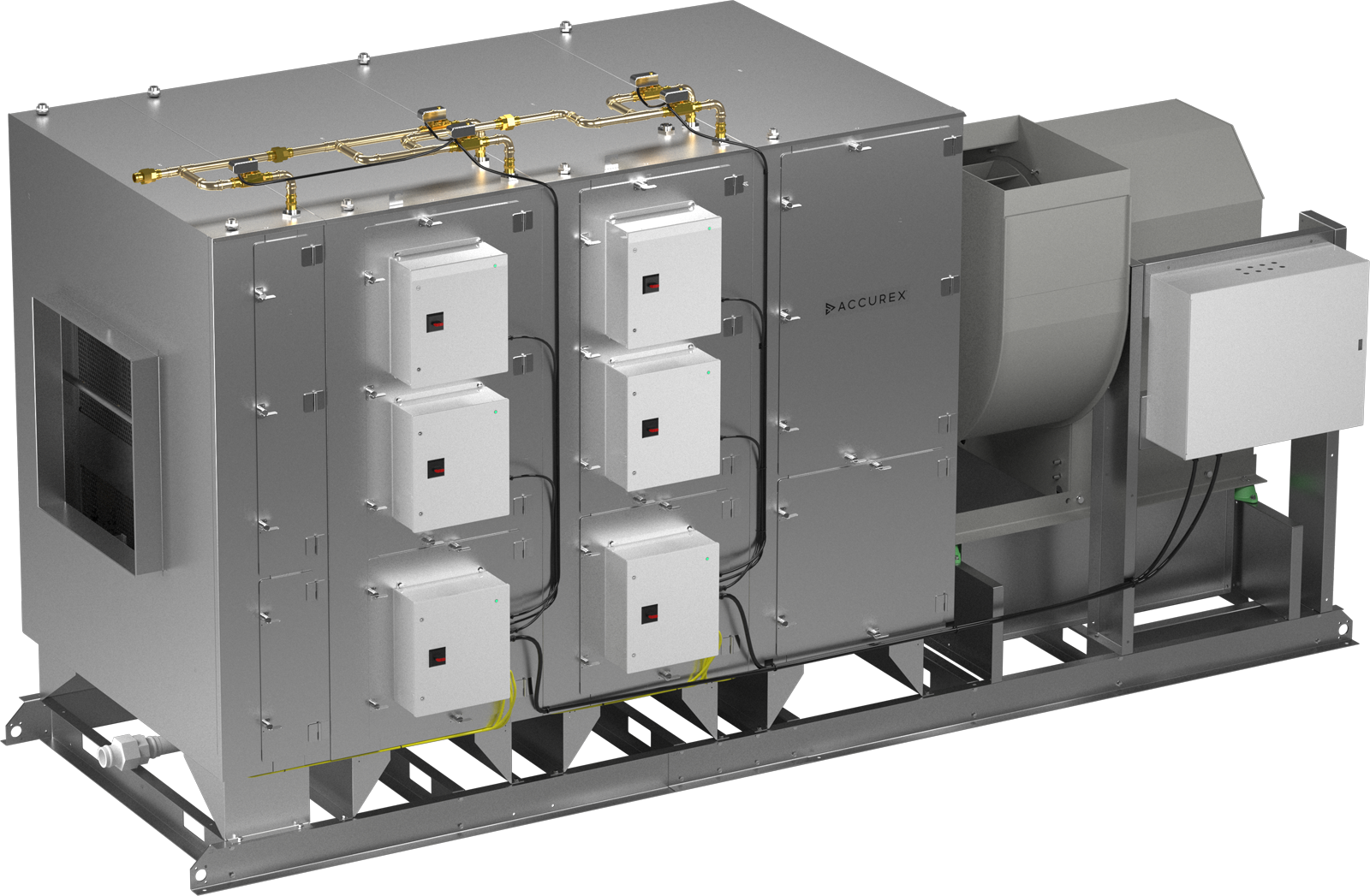

Grease Trapper ESP Pollution Control

Product Features & Benefits

Reduced cooking odors

Activated carbon trays reduce cooking odors to maximize performance and minimize maintenance

Quality construction

Built to withstand the rigors of UL 8782, Outline of Investigation for Pollution Control Units

Easy installation

Inlet transition provided to match ductwork and modular construction on a common mounting rail for ease of installation

Code compliant

Unit is listed to UL 8782 a requirement of 2021 International Mechanical Code, while also furnished with an Accurex UL 762 listed inline or utility set fan with motor and drive mounted outside of the airstream per NFPA96

Corrosion protection and durability

Stainless steel construction for long life and durability

Minimized maintenance

Automated washdown system allows cells to be easily cleaned daily, saving time and money

Easy operation

Complete control panel with user interface to allow for easy control and operation of the unit by kitchen personnel

Code-required fire protection

Ansul fire suppression system to meet UL 300 and NFPA 96 requirements

Streamlined design

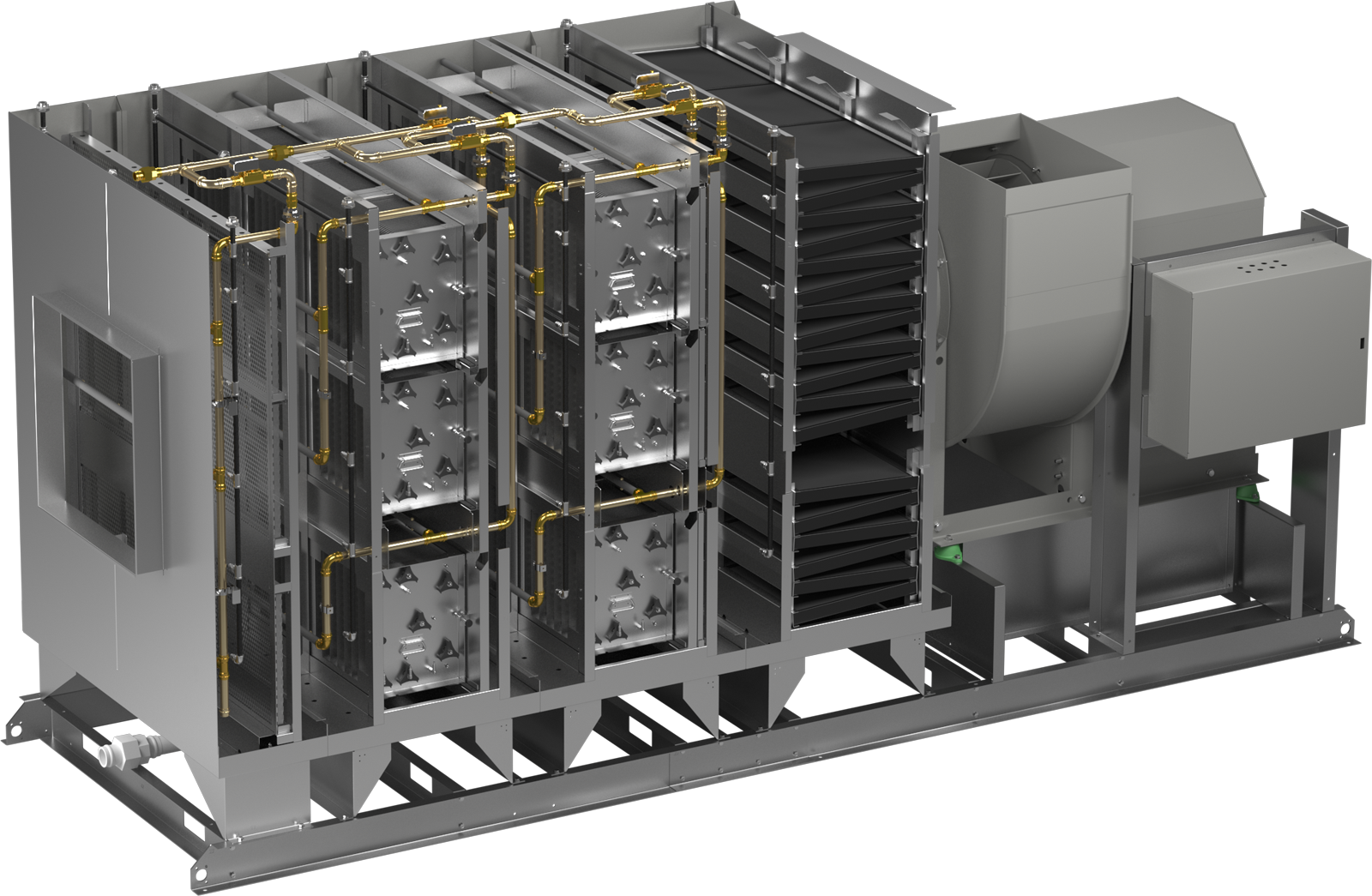

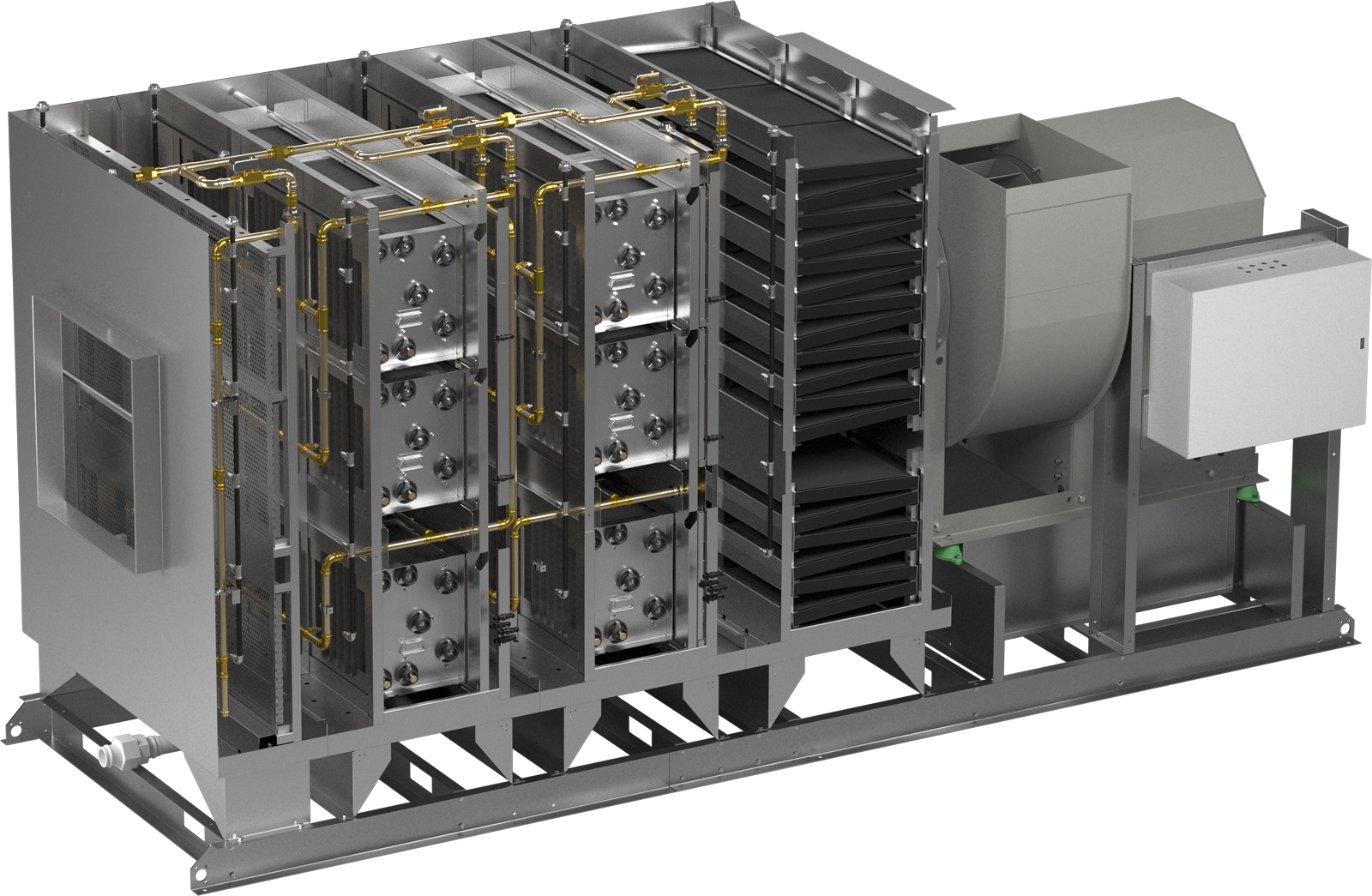

Latched doors for ease of access, automatically washed pre-filters, plug-and-play cables, and pre-engineered plumbing makes for ease of install and use

Grease and smoke removal

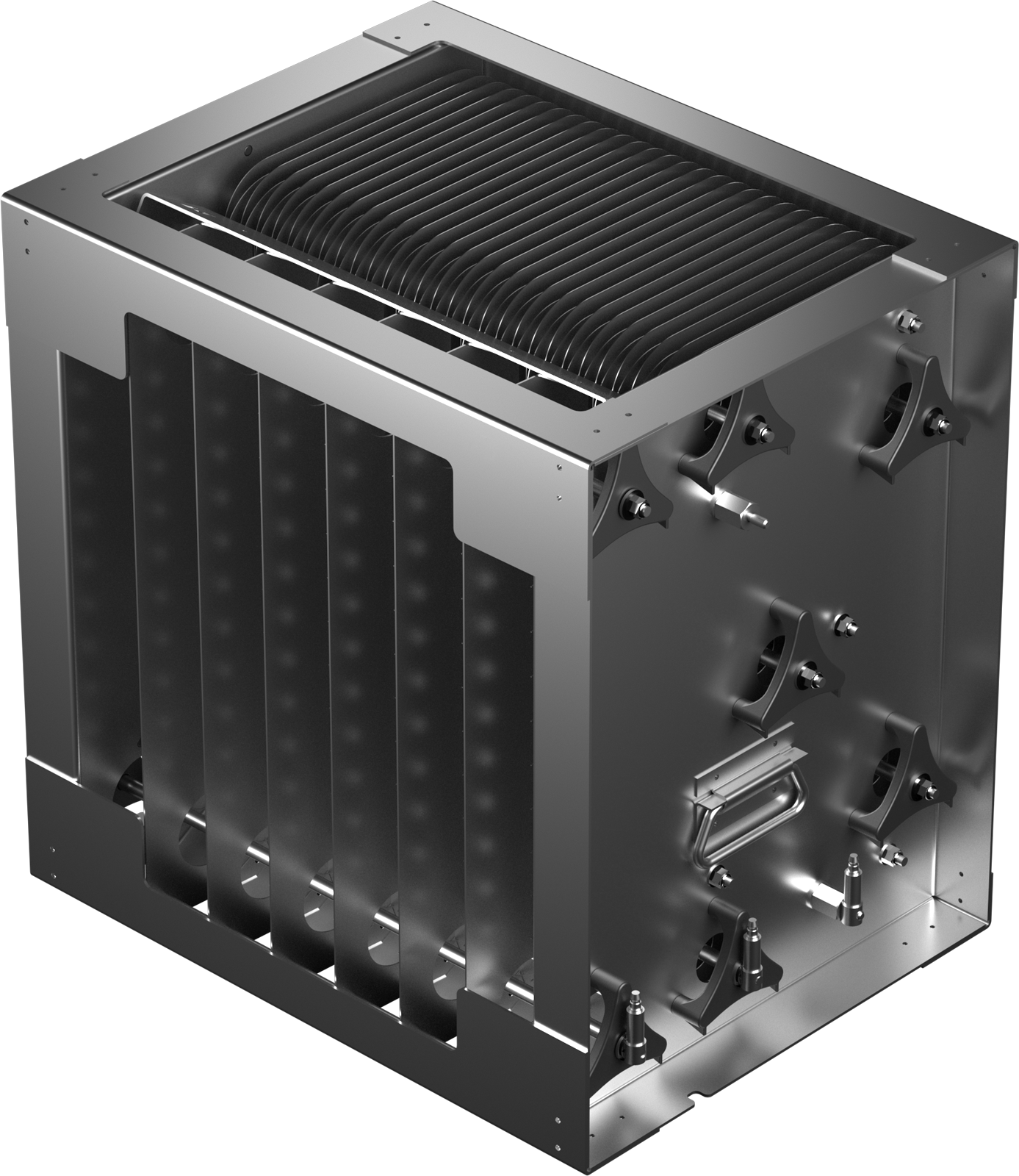

Electrostatic filtration powered by high-efficiency ESP cells remove up to 95% overall grease and smoke

Flexible configuration

Options available for indoor or outdoor installations as well as multiple fan configurations

Options & Accessories

Variable Frequency Drive (VFD) for system balancing or variable volume operation

Accurex inline fan options are available to fit specific job needs

Unit can be constructed in multiple sections for field assembly

Remote or rail-mounted main control panel

How it Works

As air enters the ESP module it passes across a row of ionizer plates, which positively charge the particles in the airstream. Upon entering the collector portion of the cell, the positively charged particles are attracted to the negatively charged plates like a magnet, which captures and removes the contaminants from the airstream.

esp135 how it works

Resources & Downloads

Catalogs

Hoods, Fire Systems, Pollution Control, Controls and Accessories Catalog

Grease Trapper ESP | Pollution Control Unit

Remove grease, smoke and odors from the kitchen exhaust airstream
