Compact mixed-flow roof fan for supply and exhaust applications, delivering high airflow performance, low sound levels, and maintenance-free direct-drive operation.
Product Features & Benefits
Totally enclosed direct-drive motors and mixed flow wheels eliminate belt losses and helps minimize energy consumption
Direct-drive fan means no belt maintenance and fewer moving parts for simplified long-term service
Vari-Green EC motors can be paired with simple speed control options to simplify airflow adjustment and commissioning

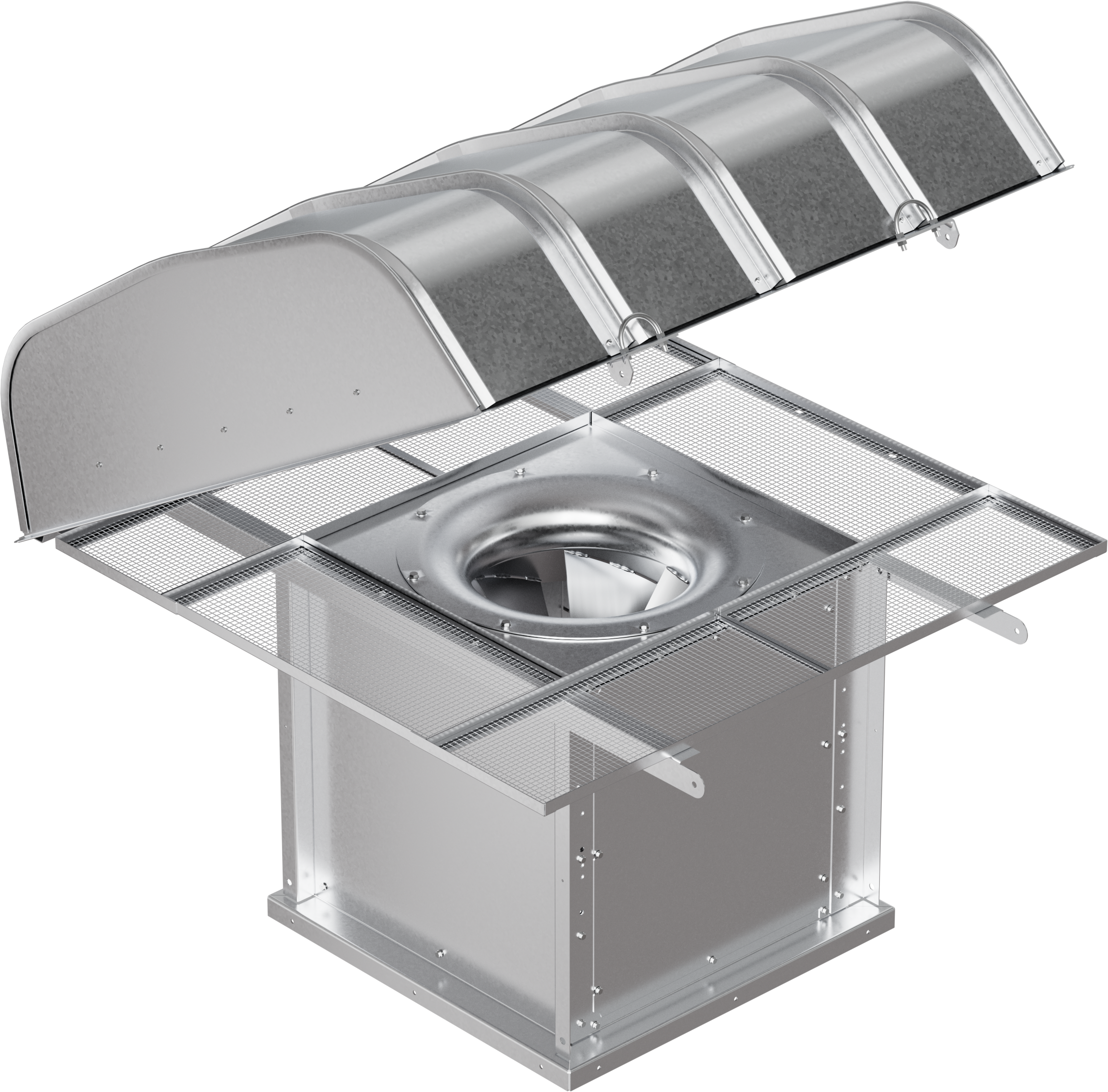

Fan and hood ship fully assembled to reduce installation time in the field, while integrated lifting lugs on the fan housing simplify rigging and installation
Panels on either side of a unit provide quick access to motor and wheel for inspection or maintenance
Mixed flow wheels are statically and dynamically balanced and each unit completes a full factory performance test
UL Class 2 washable aluminum filters are provided as standard and effortlessly removable and cleanable
NEMA-3R disconnect provided as standard. All wiring and electrical components apply with the National Elect Codes (NEC) and are either UL/ETL listed or recognized
Direct drive fan allows for bottom or horizontal discharge arrangements for convenient ducting
Unit is available with Vari-Green electronically commutated (EC) motor that can be controlled via a variety of methods
Options & Accessories
All our products can be configured to fit your specific needs.
Resources & Downloads
Archived Make-Up Air Resources
Performance & Certification
UL US 705 File no. E40001
