XCUE | Direct Drive Upblast Exhaust Fan

Industry leading durability and efficiency in rooftop restaurant exhaust

Aluminum upblast or sidewall centrifugal exhaust with a direct motor to eliminate belt losses. Opt for our Greenheck Vari-Green® motor for the ultimate in efficiency.

How To Buy
Product Features & Benefits
Sound Icon

Quiet efficiency

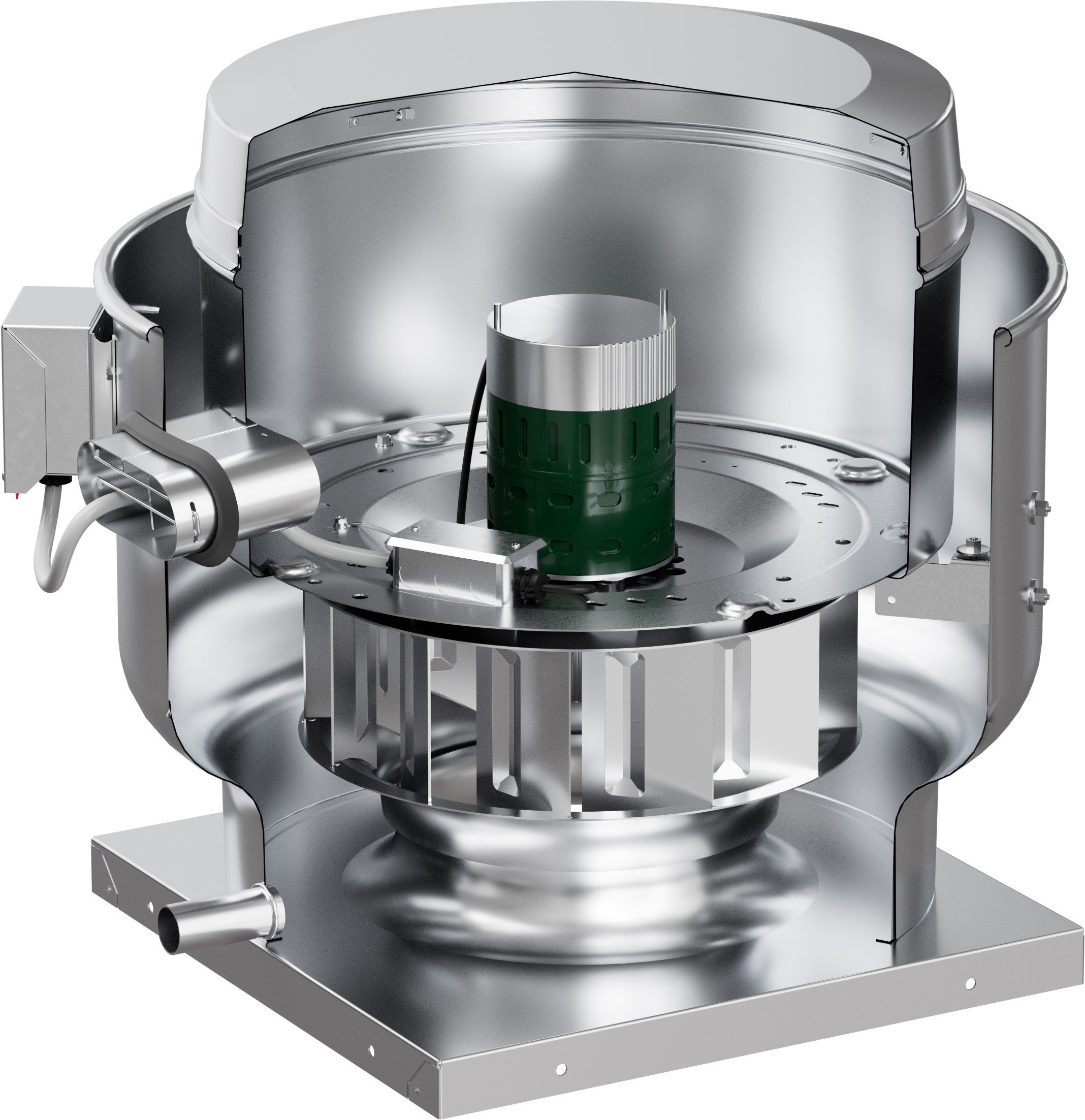

An aluminum, backward-inclined centrifugal wheel generates high-efficiency and minimal sound. Matched to the venturi for maximum efficiency, each wheel is robotically welded and statically and dynamically balanced for long life and quiet operation

Factory Wired Icon

Prewired switches

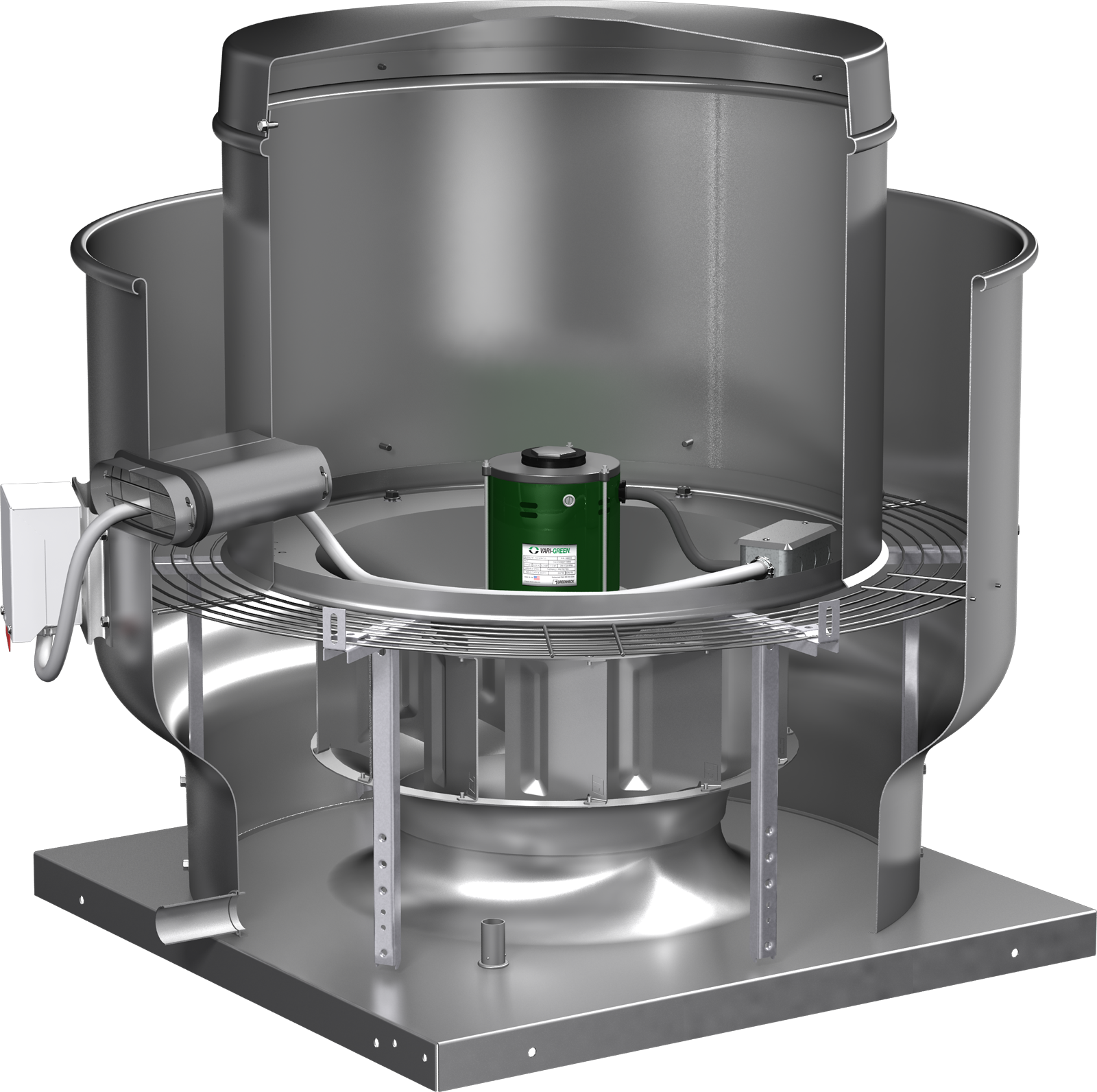

NEMA-3R disconnect switch is factory mounted and wiring is provided from the motor as standard (other switches are available)

Cleanliness Icon

Clean motor

Motor is carefully matched to the fan load and mounted out of the airstream to avoid grease build up

Easy Maintenance Icon

Easy motor access

Motor cover constructed of aluminum with stainless steel fasteners attached for easy removal and access to the motor compartment and drive assembly

Easy Maintenance Icon

Easy maintenance

Stainless steel fasteners allow for easy removal and access to the motor compartment and drive assembly

Long Life Icon

Maximum motor life

Cooling fins draw outside air directly into the motor compartment; this positive motor cooling with fresh air results in maximum motor life

Ease Icon

Easy lift

Select models have various lifting points located on the drive frame or bearing plates

Quality Icon

Reduced noise and vibration

True vibration isolators contain two independent studs with rubber neoprene to support the drive assembly and wheel for long life and quiet simple system operation—no steel-on-steel contact

Simplicity Alternate Icon

Simple system balancing

Select the Greenheck Vari-Green® motor with integrated balancing pot or add our low cost speed controller to quickly balance your system at start-up

Safety Icon


One-piece, heavy-gauge aluminum windband, with a rolled bead for extra strength, directs exhaust air away from the mounting surface

Evaporated Cooling Icon


One-piece windband is continuously welded to the curb cap and drain trough for grease leak-proof protection

Ease Icon

Easy mounting

Aluminum curb cap has pre-punched mounting holes to ensure correct attachment to the roof curb

Water Icon

Single-point drain system

The drain-trough allows for one-point drainage of water, grease and other residue

Options & Accessories

All our products can be configured to fit your specific needs.

See all options & accessories

Performance & Certification

AMCA Air & Sound Certified

UL/cUL 762 Listed

Model Designation Guide
