XCUBE | Belt Drive Upblast Exhaust Fan

The industry’s best durability and performance for restaurant exhaust

Roof-mounted or sidewall-mounted exhaust for general clean air, high grease and contaminant applications.

How To Buy
Product Features & Benefits
Sound Icon

Quiet efficiency

An aluminum, backward-inclined centrifugal wheel generates high-efficiency and minimal sound. Matched to the venturi for maximum efficiency, each wheel is robotically welded and statically and dynamically balanced for long life and quiet operation

Factory Wired Icon

Prewired switches

NEMA-3R disconnect switch is factory mounted and wiring is provided from the motor as standard (other switches are available)

Manufacturing Icon

Precision tooling

Precisely sized, ground and polished so the first critical speed is at least 25% over the maximum operating speed

Durable Construction Icon


Close tolerances, where the shaft contacts bearings, results in longer bearing life

Long Life Icon

Longer bearing life

Bearings are 100% factory tested and designed specifically for air handling applications with a minimum L(10) life in excess of 100,000 hours [L(50) average life of 500,000 hours]

Motor Icon

Clean motor

Motor is carefully matched to the fan load and is mounted out of the airstream to avoid grease build up

Easy Maintenance Icon

Easy motor access

Motor cover constructed of aluminum with stainless steel fasteners attached for easy removal and access to the motor compartment and drive assembly

Motor Icon

Maximum motor life

Cooling fins draw outside air directly into the motor compartment; this positive motor cooling with fresh air results in maximum motor life

Materials Icon

Easy lift

Select models have various lifting points located on the drive frame or bearing plates

Quality Icon

Reduced noise and vibration

True vibration isolators contain two independent studs with rubber neoprene to support the drive assembly and wheel for long life and quiet simple system operation—no steel-on-steel contact

Balance Icon


Drive assembly, including belts, pulleys and keys, are oversized to 150% of driven horsepower. Machined cast pulleys are adjustable for final system balancing; belts are static-free and oil-resistant

Cleanliness Icon

Clean mounting surfaces

One-piece, heavy-gauge aluminum windband, with a rolled bead for extra strength, directs exhaust air away from the mounting surface

Evaporated Cooling Icon


One-piece windband is continuously welded to the curb cap and drain trough for grease leak-proof protection

Ease Icon

Easy mounting

Aluminum curb cap has pre-punched mounting holes to ensure correct attachment to the roof curb

Water Icon

Single-point drain system

The drain-trough allows for one-point drainage of water, grease and other residue (roof upblast only)

Electricity Power Icon

Easy wiring access

Internal conduit chase for easy internal electrical wiring in applications not subject to NFPA

Ease Icon

Easy identification

Permanent stamped aluminum nameplate makes it easy to identify exact model and serial number

Options & Accessories

All our products can be configured to fit your specific needs.

See All Options & Accessories

Performance & Certification

AMCA Air & Sound Certified

UL/cUL 762 Listed


High Wind

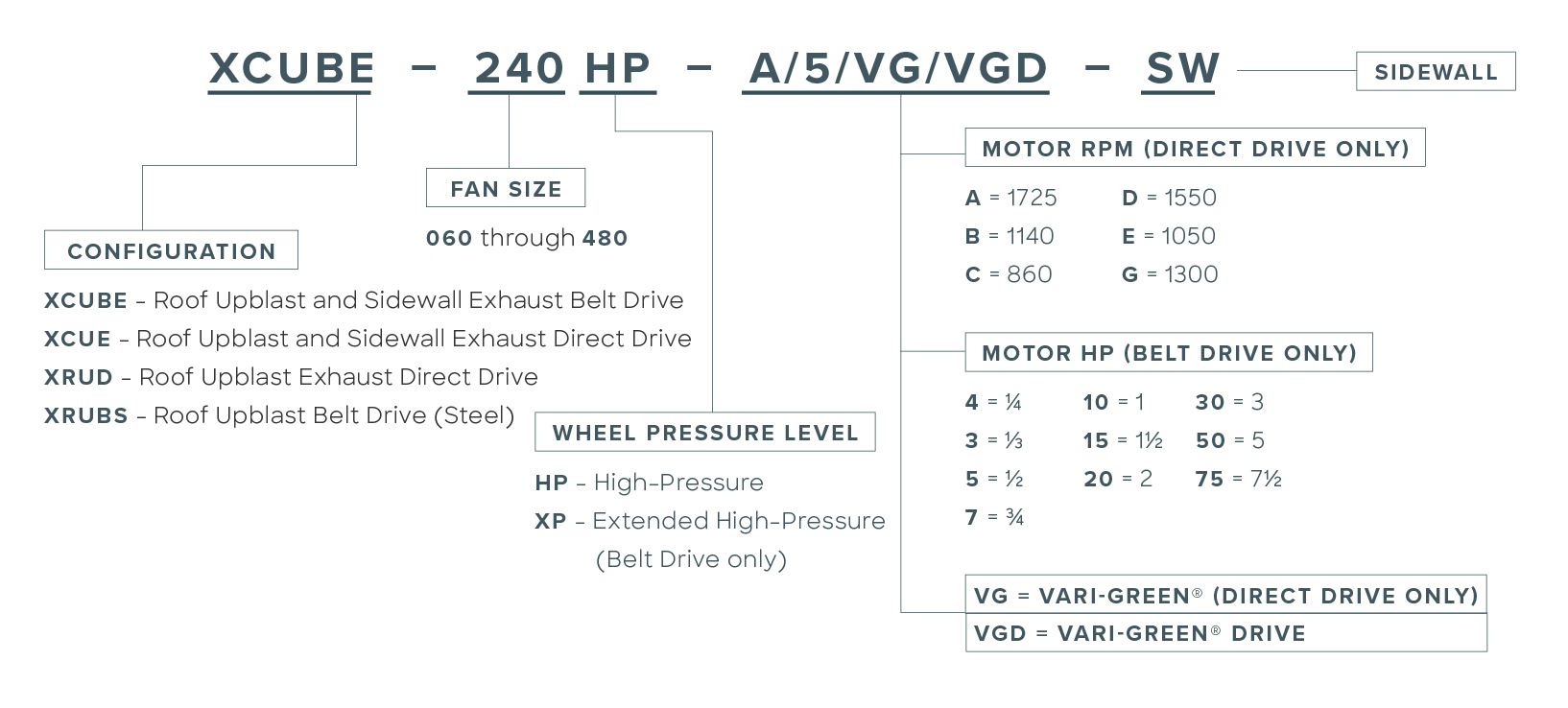

Model Designation Guide
